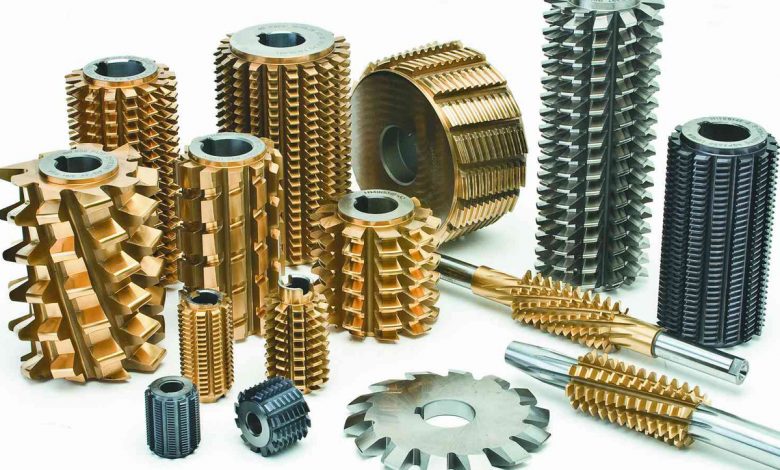

Super Tools is HSS Hob Cutter Manufacturer based in India. These are supplied by us in standard and non-standard sizes as per customer requirements. A hob cutter is a cutting tool, widely used to cut the teeth into the work piece. We have a complete range of HSS Hob Cutter with a surface finish and better accuracy.
Below is the explanation of all HSS Hob Cutter Types:
- Standard Gear Hob:
STC is a Standard Gear Hob Manufacturer Based in India, made with maximum accuracy and proper finishing. Our Hob Cutter manufactured in bore and shank types and module sizes are also available as low as 0.4 Module to 25 Module. Supplied with all types of PVD Coating. The material that we used in the standard gear hob is HSS M2, M35, M42, ASP 2052, ASP 2030. These come in two types: Bore & Shank Type. Accuracy Class: A/ AA/ AAA as per DIN 3968.
- Pre-Shaving Hobs:
Made from the material HSS, HSS-CO, PM-HSS in all types of PVD Coatings. All types of Size and Module ranges can be supplied by STC based on Customer Drawings. Accuracy Class of Pre-Shaving Hob is A/AA/AAA as per DIN 3968. We can also supplied with all types of PVD Coatings. Standards: DIN 3968, ANSI B94.7, JIS B4354, GB/T6084. Forms: Topping, Semi-Topping, Finishing.
- Pre-Grinding Hobs:
We are a Pre-Grinding Hob Manufacturer in India. Made with maximum accuracy and proper finishing. Specific care must be taken while grinding because Grinding may make cracks on the cutting base. Grinding has certain important parameters that need to be followed. Counseled to always select grinding disks correctly. The Material that we used in Pre-Grinding Hob is HSS M2, M35, M42, PM-HSS. The Module range of this hob is m1 to m6 and overall length: 40 to 100mm. Structures: Bore Type and Shank Type.
-
Pre Skiving Gear Hob:
It is essential to sharp the Gear Skiving Hobs till they wear a mask is reaching 0.15mm. Its measurement depends on the cutter. These hobs are available in standard and non-standard Involute profiles in standards GB, DIN, AGMA, BS, etc. Also Supplied with all types of PVD Coatings. Material: HSS, M35, ASP 2052, S390, S290, and ASP 2030. Pressure Angle: 20°.
- Shank Type Hobs:
Designed with extra-long cutting length. Designed for multiple purposes for most machines in today’s hobbing machine market including shank styles. It is available in a Diameter Range from 80mm to 150mm in Material HSS M2/M35. Shank Type Hobs are required only where higher quality is required. They come in different categories: Short Cylindrical, Tapered Shank, and Hollow Taper Shank. The Diameter of this hob is 80mm to 150mm. Standard: DIN, AGMA, BS, GOST.
- Involute Spline Hob:
Super Tools is a Involute Spline Hob Manufacturer. These hobs are provided with shoulder clearance in single and multi-thread designs. We can also supply in single or multi-starts. Different forms of this hob are available like Non-Topping, Semi-Topping, Topping, Finishing, etc. Also, manufacturer hobs as per customer drawings. Accuracy Class of Involute Spline Hob is A/AA as per DIN 3968. Pressure Angles: 30°, 37.5°, or 45°.
-
Parallel Spline Hob:
These are mainly used for cutting Parallel Splines. Hob cutters are manufactured with or without lugs, semi-topping, and clearance types. Parallel Sided Hobs and Involute Spline Hobs are provided for performing parallel or straight or helical splines with profile change. The material that we used in Parallel Spline Hob is ASP2052, S390, S290, ASP 2030, and M35. Features: Lugs & Shoulder Clearance types.
- Chain Sprocket Hob:
Chain Sprocket Hob is accessible in varieties of designs in single or multi-start. Mainly designed to produce accurate finishes on several tooth forms. STC also manufactured Chain Sprockets Hobs as per customer requirement or drawing. It produces the correct tooth form at only one depth of cut, so tooth form accuracy is more important. These are available in Single and Multiple thread designs. The Pitch Range of the hob is 5mm to 75mm. Designs: Multi-Gashes and Single or Multi-Start.
- Serration Hob:
Serration Hob is frequently used in automobile industries. Also used for cutting various types of gear profiles. Mainly designed for machine gears, sprockets, and spline, used as a hobbing cutter. This range is fabricated by making use of the best-grade raw material, which is obtained from the trusted vendors of the industry. Outside Diameter: 45 to 125mm, and Accuracy Class: A. STC are always ready to make products as per special requirements.
-
Timing Pulley Gear Hob:
STC is a Timing Pulley Gear Hob Manufacturer based in India. Offered with the ground or unground profiles and topping or non-topping designs. These are available in two types: Hole Type & Shank Type. Accuracy Classes of Timing Pulley Gear Hob is A/AA (as per DIN 3968, BS 2062). Pitch Range: 2.032 mm or 1/5” to 20 mm or 1¼.
- Worm Gear Hob:
Cutting Tool is manufactured in a shell or shank with a straight or spiral gash. Designed for plunge cutting. We can also supply Ground Relieved Forms. Manufactured in Single Start and Multi Start Pitches. Designs: Multi-gashes and Single or Multi-Start. The Material that we used in ASP 2052, S390, S290, ASP2030, and M355.
- Special Profile Hob:
STC, Tools is Special Profile Hob Manufacturer, for various components like missing teeth, slack adjustors, engaging gear components, etc. Made in custom profiles and size range as per customers’ requirements. Often, hobs are classified into grades like A, B, C, D, and their special grade is AA, which can also be used as Quality Grade. Accuracy Class: AAA/AA/A as per DIN 3968. Supplied with all types of the latest PVD coatings.
- Spline Gear Hob Cutters:
Spline Gear Hob Cutter is manufactured in standard as well as Specific Customer Requirements. Frequently used in automobile industries. Made from premium grade imported raw material as we don’t compromise with the quality. STC is specialized in manufacturing the standards, non-standard hardened, spur gear, helical gear, worm and worm gears, ground gear.
